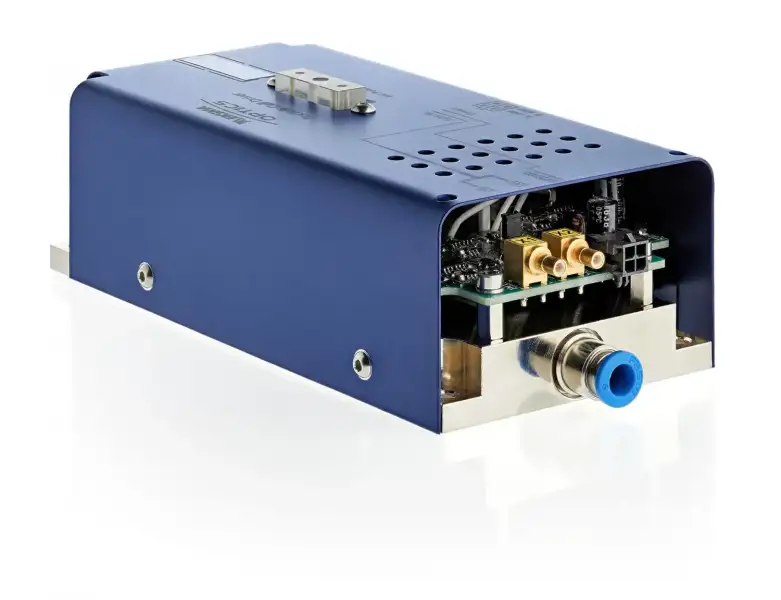

DPBx High Voltage Pockels Cell Drivers (≤1 MHz, ≤7.2 kV) DPB1-1000-3.0-Al
EKSMA Optics
| Product number | DPB1-1000-3.0-Al |
| Quantity unit | pc |
| Max HV operating voltage, kV: | 3 |
| Max HV repetition rate: | 1000 kHz |
| HV pulse duration: | 100-5000 ns |
| HV pulse rise time, typical: | <7,5 ns |
| HV fall time, typical: | <7,5 ns |
| Output polarity: | Bipolar |
| HV power consumption, W: | <120 |
| 24 V power consumption, W: | <9 |
| Cooling: | Water |
