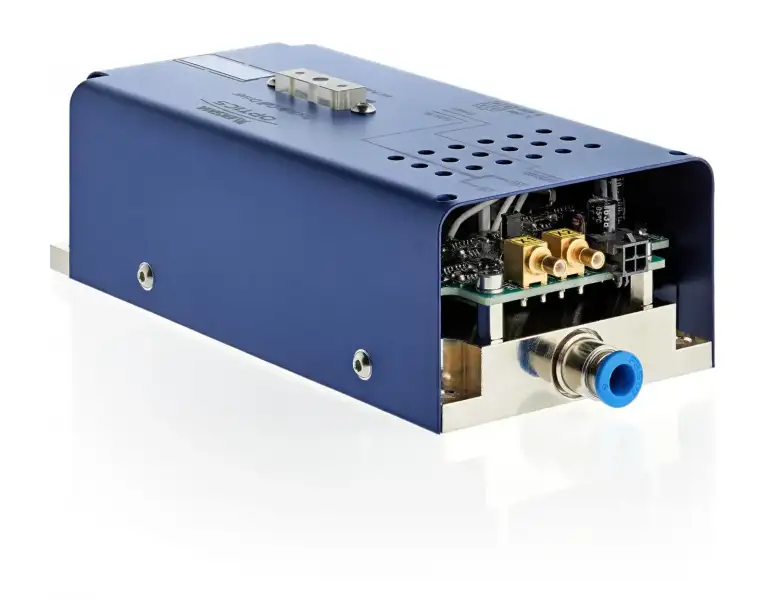

DPBx High Voltage Pockels Cell Drivers (≤1 MHz, ≤7.2 kV) DPB2-1000-3.8-Al
EKSMA Optics
| Product number | DPB2-1000-3.8-Al |
| Quantity unit | pc |
| Max HV operating voltage, kV: | 3.8 |
| Max HV repetition rate: | 1000 kHz |
| HV pulse duration: | 1,00-5000 ns |
| HV pulse rise time, typical: | <6 ns |
| HV fall time, typical: | <6 ns |
| Output polarity: | Bipolar |
| HV power consumption, W: | <230 |
| 24 V power consumption, W: | <12 |
| Cooling: | Water |
