Motorized Closed Variable Two Wheels Attenuator, 25,4 mm

Description:

Filter diameter – Ø20/Ø25.4 mm
Clear aperture Ø18/Ø23 mm
Non parallel filters (inclined by 4°)
Maximum thickness of filters – 4 mm
C -mount threads on both ends

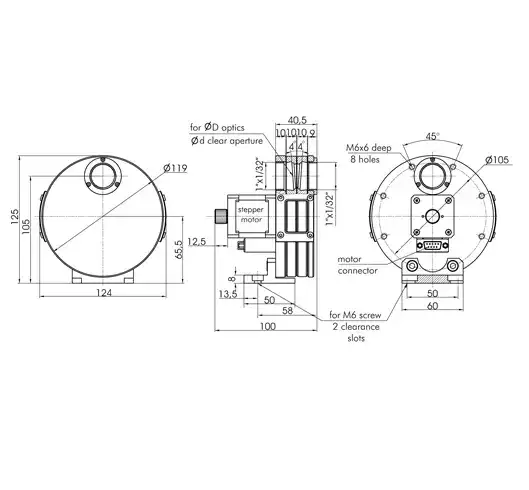

Motorized Closed Variable Two Wheel Attenuator 991-0702 consists of two filter wheels. Each wheel contains eight filter mounts of ØD mm with clear aperture of Ød mm. Each mount is inclined by 4 degrees to prevent mutual reflections between filters.

We supply the attenuator 991-0702-01 with a standard, most popular, set of filters. See the table below. Alternatively, optics could be manufactured to individual orders. Or we could supply the attenuator without filters, which you can fit by yourself. You bring a filter of each wheel into the optical path easily by hand or using automation. The two wheels are driven by a single step motor. A computer can operate it via a controller and Computer Software come separately.

For fastening, the attenuator has clearance slots for M6 and M4 screws. There are also two M6 holes, and one M4 hole (opposite to one of the M6 holes).

Material: black anodized aluminium.
