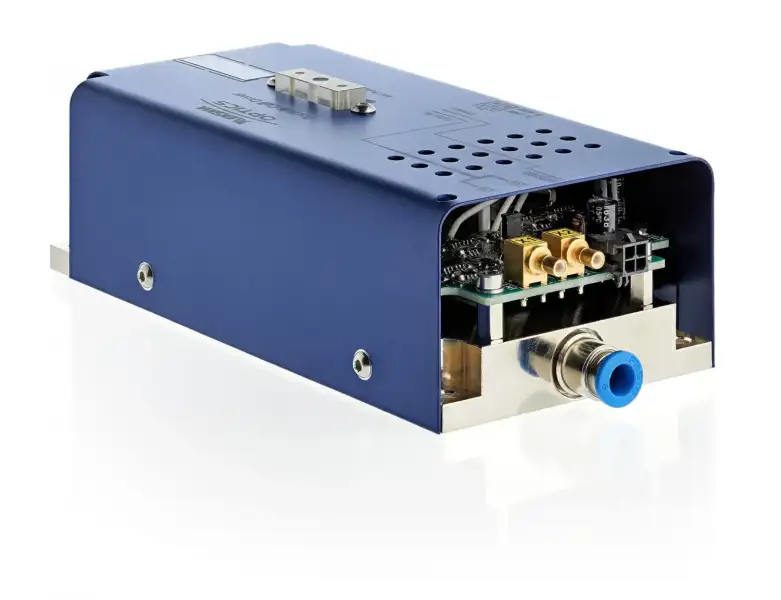

DPBx High Voltage Pockels Cell Drivers (≤1 MHz, ≤7.2 kV) DPB2-1000-4.0-Al
EKSMA Optics
| Product number | DPB2-1000-4.0-Al |
| Quantity unit | pc |
| Max HV operating voltage, kV: | 4 |
| Max HV repetition rate: | 1000 kHz |
| HV pulse duration: | 1,00-5000 ns |
| HV pulse rise time, typical: | <9,5 ns |
| HV fall time, typical: | <8,5 ns |
| Output polarity: | Bipolar |
| HV power consumption, W: | <210 |
| 24 V power consumption, W: | <12 |
| Cooling: | Water |
