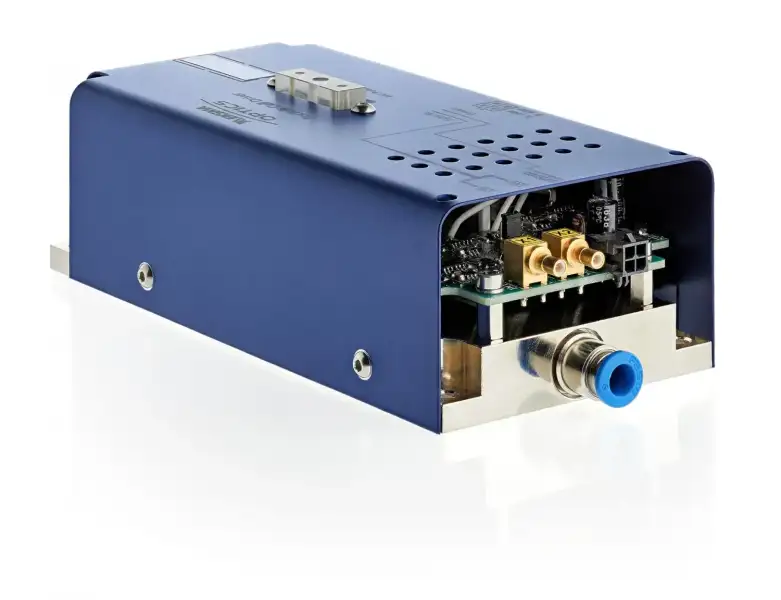

DPBx High Voltage Pockels Cell Drivers (≤1 MHz, ≤7.2 kV) DPB1-300-4.6-Al
EKSMA Optics
| Product number | DPB1-300-4.6-Al |
| Quantity unit | pc |
| Max HV operating voltage, kV: | 4.6 |
| Max HV repetition rate: | 300 kHz |
| HV pulse duration: | 100-5000 ns |
| HV pulse rise time, typical: | <8 ns |
| HV fall time, typical: | <8 ns |
| Output polarity: | Bipolar |
| HV power consumption, W: | <100 |
| 24 V power consumption, W: | <4 |
| Cooling: | Water |
